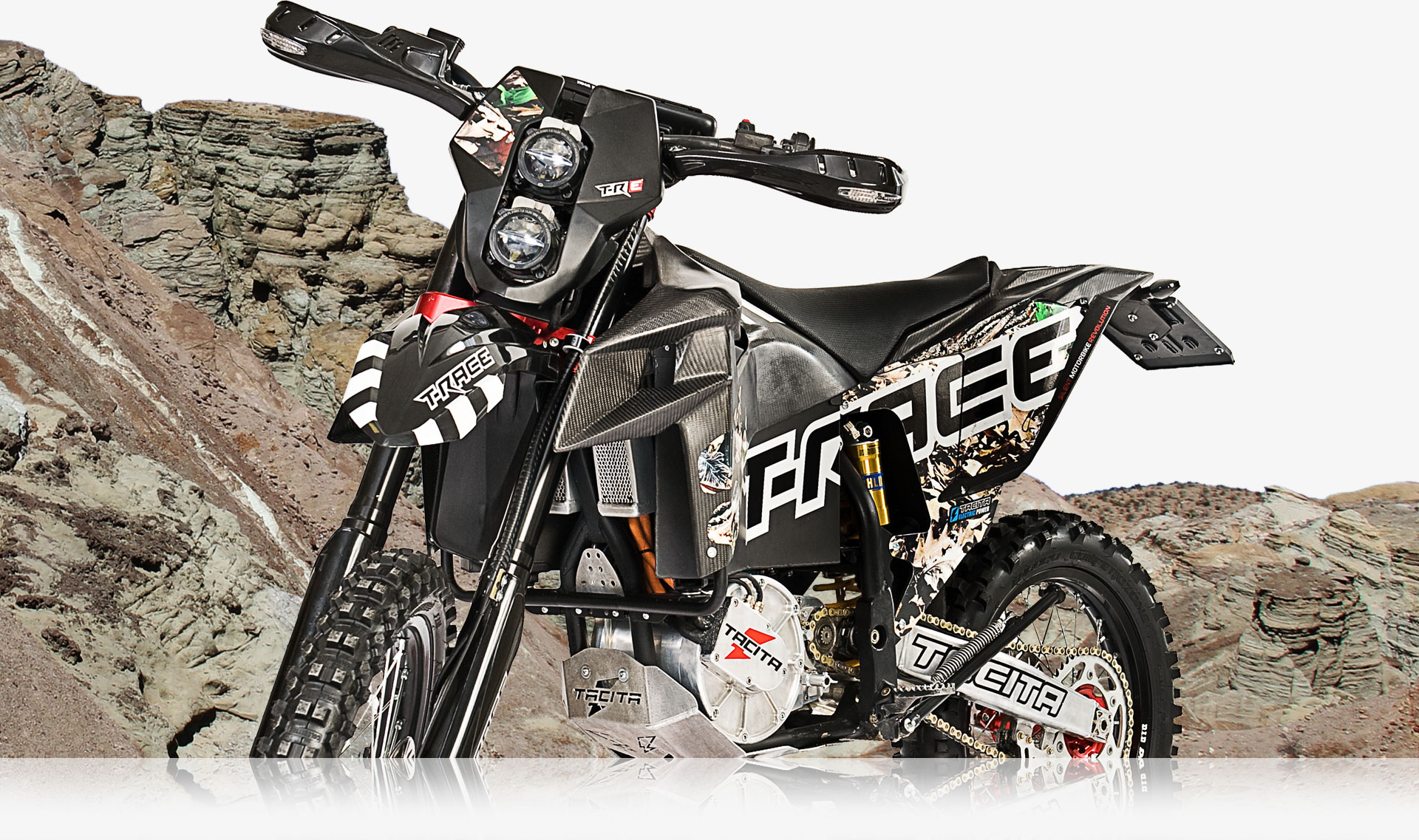

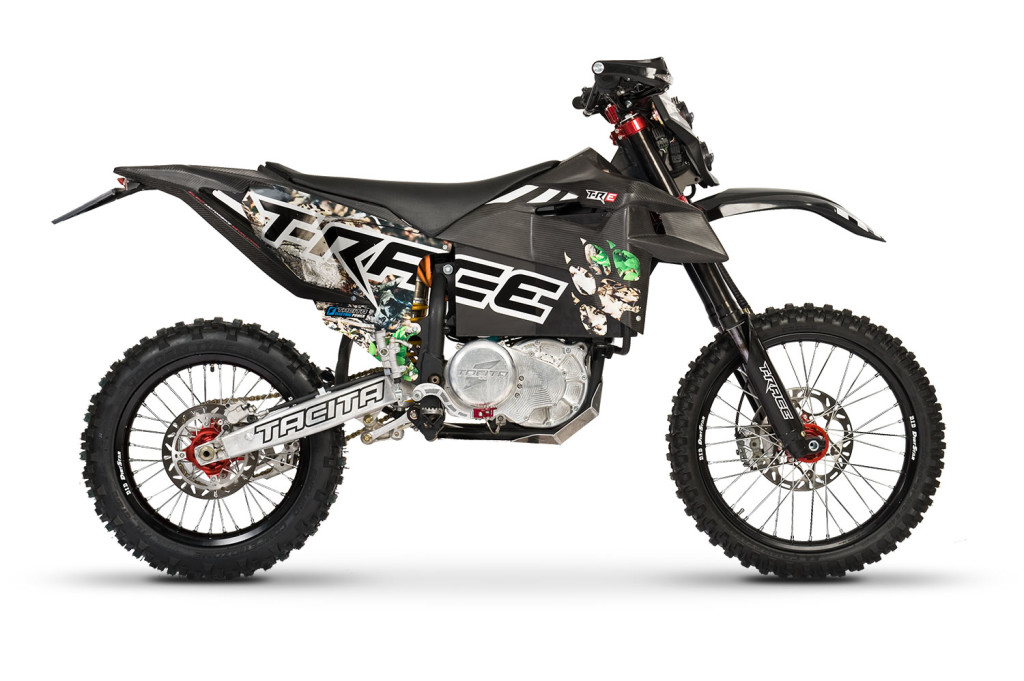

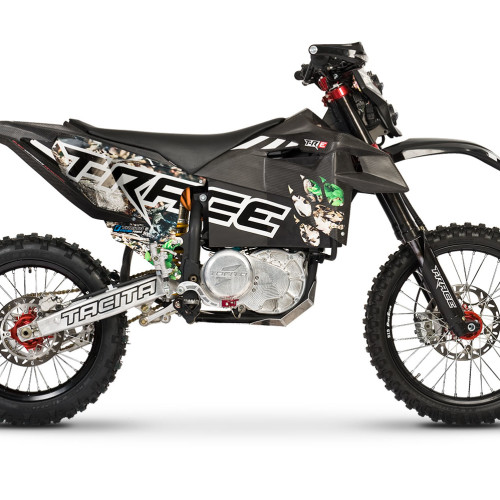

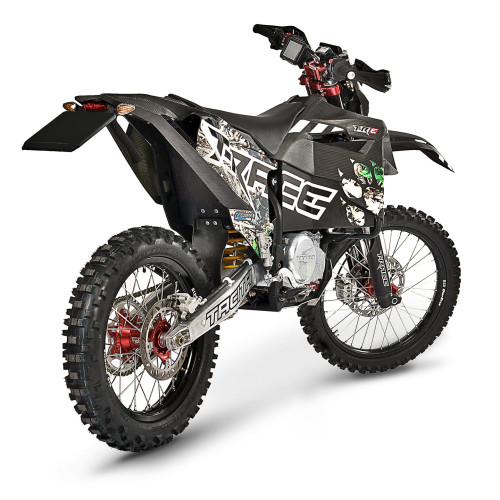

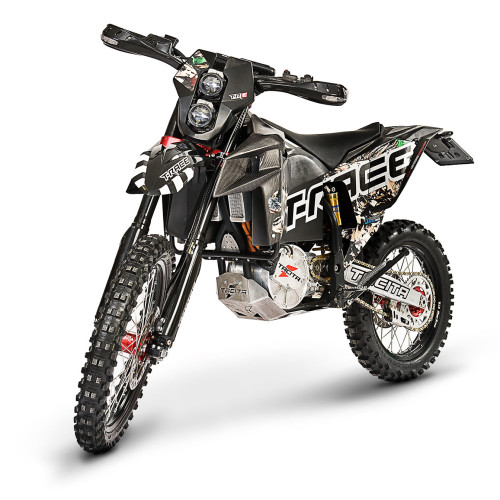

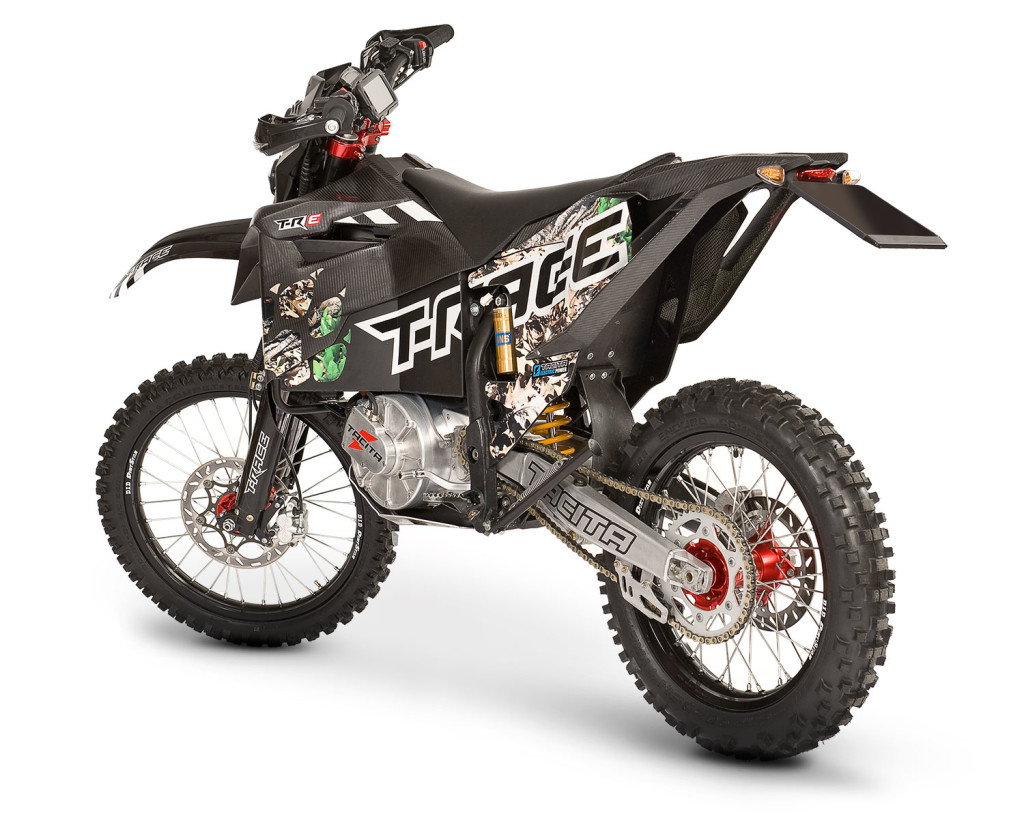

This version is designed to obtain the maximum result practicing enduro. Lightweight and powerful, aggressive and sharp. All the features of this version are designed to maximize the 0% emission attitude for enduro riders.
- BATTERY LIFE 4000 CYCLES
- great driveability
- approved for passenger
- double batteries optional
maps
two maps of motor power
gearbox
5 speed separate gearbox with hydraulic clutch
rear
aluminum rear monocoque
motor
asynchronous electric motor three-phase induction
BRAKE
two maps of motor brake
BODY
carbon-kevlar fairing
FOUR PACKS OPTIONAL
APPROVED FOR PASSENGER
REGENERATIVE BRAKING
technical specifications
ENGINE: ELECTRIC ASYNCHRONOUS THREE-PHASE INDUCTION
MAPPINGS: ECO AND SPORT
COOLING SYSTEM: LIQUID-TYPE, WITH CIRCUITS FOR MOTOR AND CONTROLLER
TRANSMISSION: 5-SPEED GEARBOX WITH HYDRAULIC CLUTCH
TRACTION BATTERY: LI-PO LYTHIUM POLYMER BATTERY 10.6 kWh
BATTERY LIFE: UP TO 4000 CYCLES TO 80% INITIAL CAPACITY
MAX POWER: 22 kW
MAX RPM: 8000
MAX TORQUE: 75 Nm
WHEEL BASE: 1490 mm
FRAME: SPLIT SINGLE-BEAM IN CROME-MOLYBDENUM
GROUND CLEARANCE: 330 mm
FRONT SUSPENSION: UPSIDE DOWN MARZOCCHI TELESCOPIC HYDRAULIC FORK WITH ADVANCED AXLE 45 mm DIAM

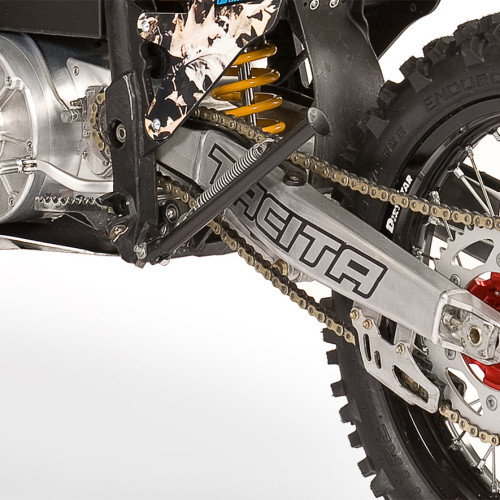

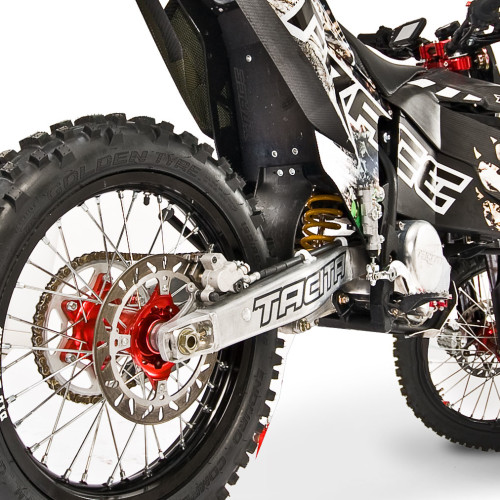

REAR SUSPENSION: PROGRESSIVE LINK WITH OHLINS FULLY ADJUSTABLE SUSPENSION UNIT. COMPRESSION AT HIGH AND LOW SPEED AND SEPARATELY ADJUSTABLE REBOUND DAMPING
SUSPENSION TRAVEL: 300 mm
FRONT WHEEL: 1.60 X 21” – TYRES 90/90-21
FRONT BRAKE: FLOATING DISC 300 mm DIAMETER
REAR WHEEL: 2.15X18” – TYRES 140/80-18
REAR BRAKE: 220 mm DISC
REGENERATIVE BRAKING
2 MAPS ENGINE BRAKE: NO ENGINE BRAKE (2-STROKE ENGINE STYLE)
OR WITH ENGINE BRAKE (4-STROKE ENGINE STYLE) AND REGENERATIVE BRAKING

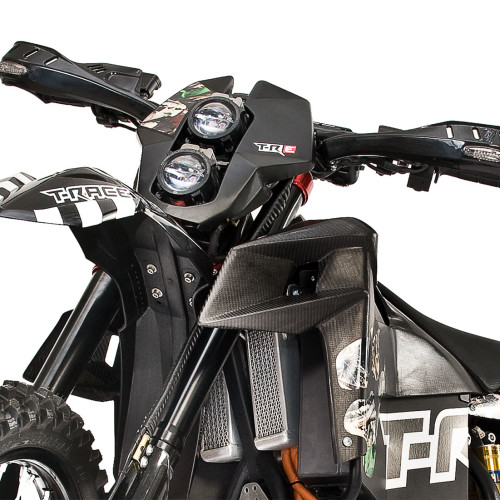

LIGHTS: FULL LED
BODY: KEVLAR AND CARBON FIBER
APPROVED FOR PASSENGER
RANGE: 60 km estimated riding on offroad recreational trail (before RESERVE POWER)
RESERVE POWER: automatically activated at 20% of remaining charge, reducing performance to reach the nearest charging point.
CHARGING TIME:
50 min to the FULL CHARGE from “RESERVE POWER” level, by the 6 kW charger on the 5.3 kWh model
1 h 50 min to the FULL CHARGE from “RESERVE POWER” level, by the 6 kW charger on the 10.6 kWh model
1 h 50 min to the FULL CHARGE from “RESERVE POWER” level, by the 3 kW charger on the 5.3 kWh model
3 h 40 min to the FULL CHARGE from “RESERVE POWER” level, by the 3 kW charger on the 10.6 kWh model
5 h 30 min to the FULL CHARGE from “RESERVE POWER” level, by the 1 kW charger on the 5.3 kWh model
10 h 30 min to the FULL CHARGE from “RESERVE POWER “ level, by the 1 kW charger on the 10.6 kWh model
To see all the tech specs
The technical and aesthetic characteristics of the products may be changed without notice from Tacita srl. Images may not reflect the characteristics of the newer models. Tacita srl reserves the right to make improvements and / or changes to the project without any obligation to release.
