FROM THE DESERT TO EVERYDAY ADVENTURES

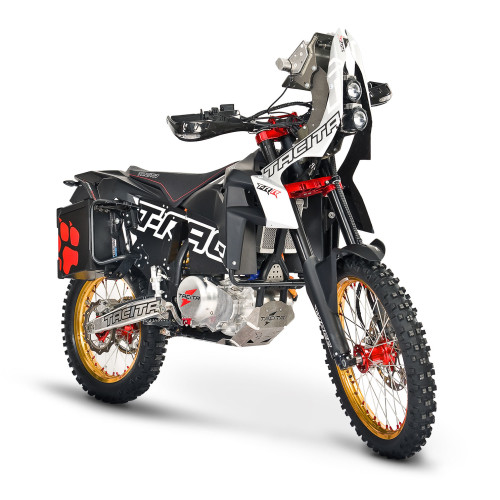

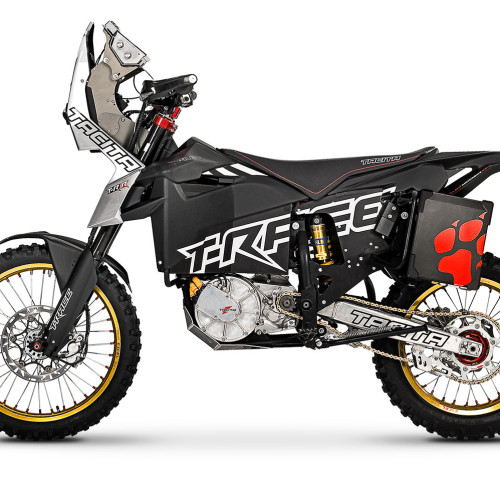

The T-Race Rally version is designed to obtain the maximum result practicing long distance offroad and everyday adventures. Designed for maximum range, this bike will be the ideal companion of the silent motorbike revolution

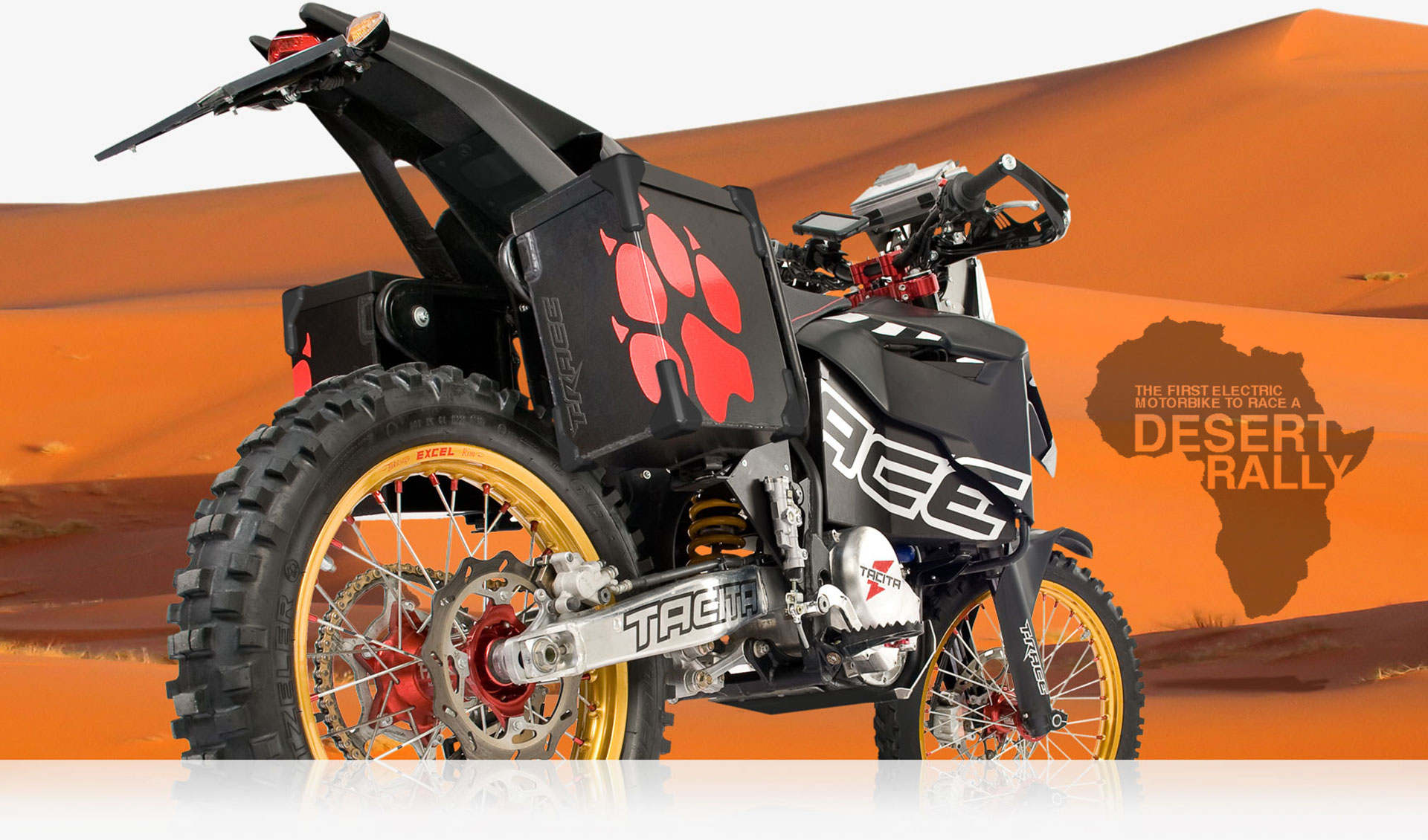

T-Race Rally has also been the first electric bike to debut on an African rally

  • BATTERY LIFE 4000 CYCLES
  • strong dispensing at low revs
  • max traction
  • dynamic balancing
  • approved for rider and passenger
maps

two maps of motor power

gearbox

5 speed separate gearbox with hydraulic clutch

rear

aluminum rear monocoque

motor

asynchronous electric motor three-phase induction

BRAKE

two maps of motor brake

BODY

carbon-kevlar fairing

APPROVED FOR PASSENGER

LONGEST RANGE

REGENERATIVE BRAKING

technical specifications

ENGINE: ELECTRIC ASYNCHRONOUS THREE-PHASE INDUCTION

MAPPINGS: ECO AND SPORT

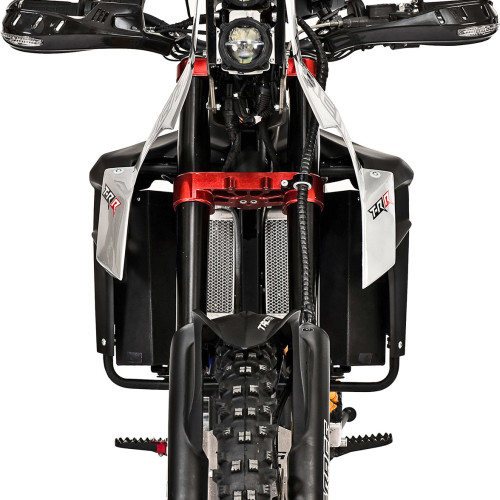

COOLING SYSTEM: LIQUID-TYPE, WITH CIRCUITS FOR MOTOR AND CONTROLLER

TRANSMISSION: 5-SPEED GEARBOX WITH HYDRAULIC CLUTCH

TRACTION BATTERY: LI-PO LYTHIUM POLYMER BATTERY 10.6  kWh

BATTERY LIFE: UP TO 4000 CYCLES TO 80% INITIAL CAPACITY

MAX POWER: 22 kW

MAX RPM: 8000

MAX TORQUE: 75 Nm

WHEEL BASE: 1490 mm

FRAME: SPLIT SINGLE-BEAM IN CROME-MOLYBDENUM

GROUND CLEARANCE: 330 mm

FRONT SUSPENSION: UPSIDE DOWN MARZOCCHI TELESCOPIC HYDRAULIC FORK WITH ADVANCED AXLE 45 mm DIAM

REAR SUSPENSION: PROGRESSIVE LINK WITH OHLINS FULLY ADJUSTABLE SUSPENSION UNIT. COMPRESSION AT HIGH AND LOW SPEED AND SEPARATELY ADJUSTABLE REBOUND DAMPING

SUSPENSION TRAVEL: 300 mm

FRONT WHEEL:  1.60 X 21” – TYRES 90/90-21

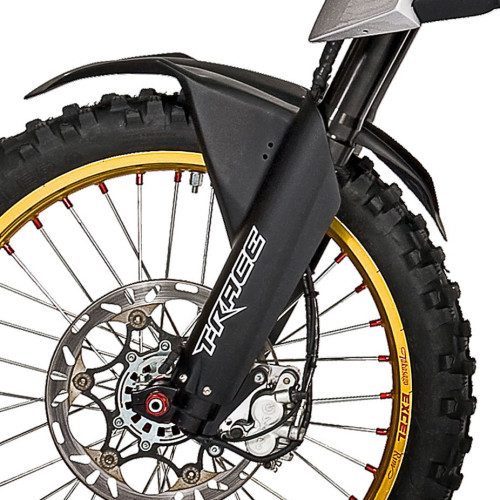

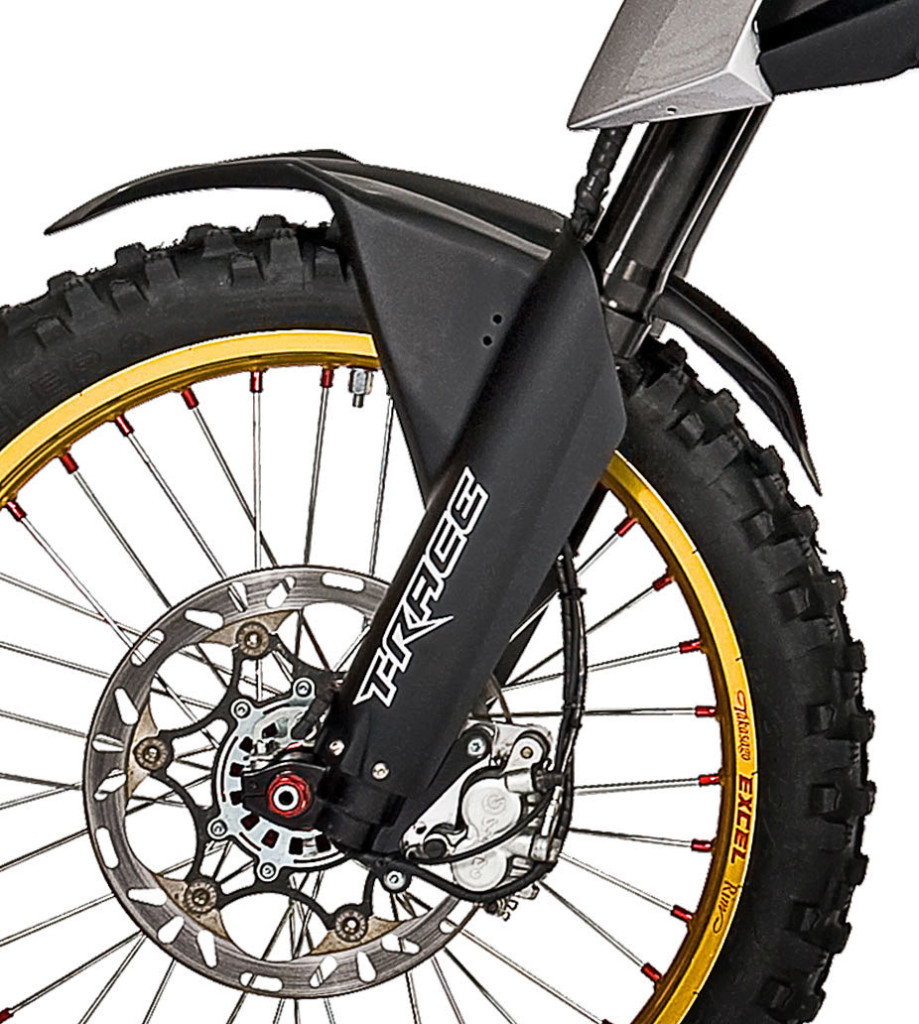

FRONT BRAKE: FLOATING DISC 300 mm DIAMETER

REAR WHEEL:  2.15X18” – TYRES 140/80-18

REAR BRAKE: 220 mm DISC

REGENERATIVE BRAKING

2 MAPS ENGINE BRAKE: NO ENGINE BRAKE (2-STROKE ENGINE STYLE)

OR WITH ENGINE BRAKE (4-STROKE ENGINE STYLE) AND REGENERATIVE BRAKING

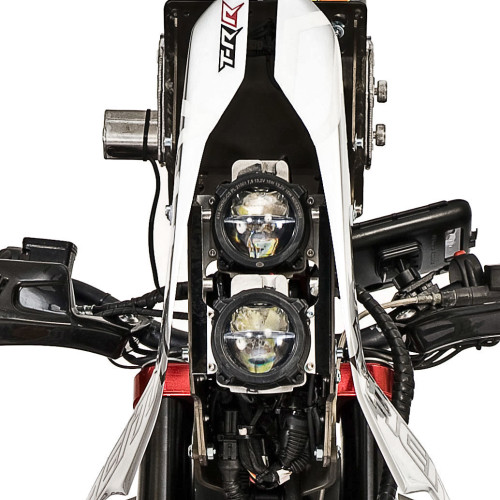

LIGHTS: FULL LED

BODY: KEVLAR AND CARBON FIBER OR FLAX FIBER AND BIO-RESIN

APPROVED FOR PASSENGER

RANGE: 120 km estimated riding on offroad recreational trail (before RESERVE POWER)

RESERVE POWER: automatically activated at 20% of remaining charge,  reducing performance to reach the nearest charging point.

CHARGING TIME:

1 h 50 min to the FULL CHARGE from “RESERVE POWER” level, by the 6 kW charger

3 h 40 min to the FULL CHARGE from “RESERVE POWER” level, by the 3 kW charger

10 h 30 min to the FULL CHARGE from “RESERVE POWER” level, by the 1 kW charger

To see all the tech specs

The technical and aesthetic characteristics of the products may be changed without notice from Tacita srl. Images may not reflect the characteristics of the newer models. Tacita srl reserves the right to make improvements and / or changes to the project without any obligation to release.
